Goods Lifts

Efficient Goods Transportation

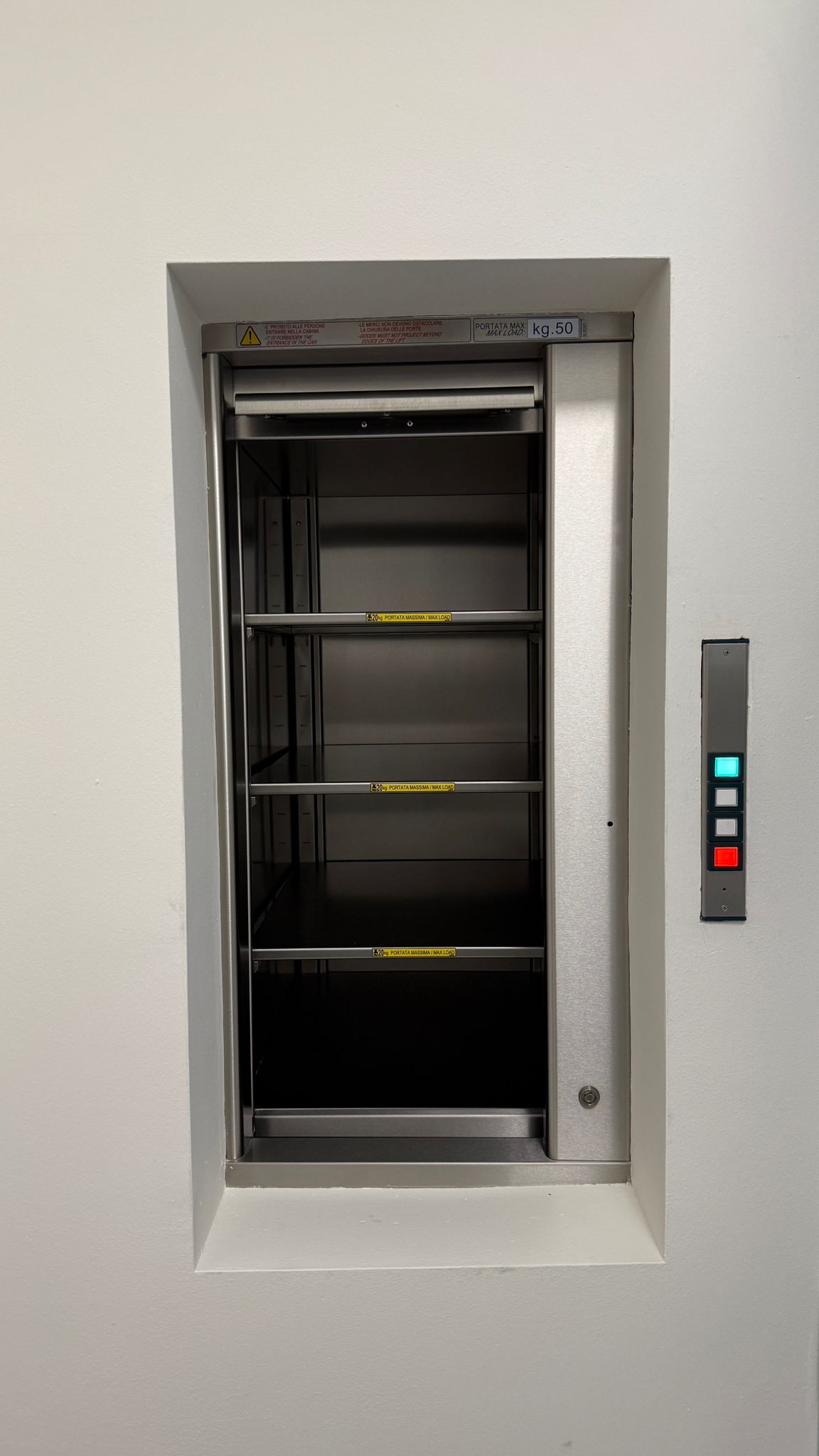

The Meyer Goods Lifts offer both robust and compact solutions for reliable and efficient material handling. Designed for a wide range of applications, including hotels, warehouses, and industrial settings, the Meyer Goods Lifts or dumbwaiters excel in transporting goods and trolleys with ease.

Key Features

Versatile Applications

Suitable for various applications, including laundry services, parcel delivery, and material handling in industrial settings.

Robust Construction

Built to withstand the demands of frequent use and heavy loads.

Customisable Solutions

Adaptable to specific requirements with options for different load capacities and travel distances.

Smooth and Reliable Operation

Ensures efficient and safe material handling.

Features

Load Capacity
50-500 kg
Max. Speed
0.3 m/s - 0.35 m/s
Travel
Up to 35 meters
Stops
Up to 12
Drive System
Electric
Load Capacity
Up to 500 kg
Optional Features
Double Cabin

Notes

Designed for applications where the service level is flush with the ground.
Available in various configurations to suit specific requirements.
Compliant with European Machinery Directive 98/37/CE.
Meyer Lifts goods lift illustration

Model Table Loading

Layouts
Car Dimensions
Clear Car Dimensions
Minimum Shaft Size
1
A B+20
2,3
A+20 B
4,5
A B
A+20 B+20
A+150 B+225
6
A+40 B
7
A+20 B+20
1. In case of car doors, B-100
2. In case of car doors, B-200

Layout 1

Layout 2-3

Layout 4-5

Layout 6

Layout 7

Layouts
Car Dimensions
Clear Car Dimensions
Minimum Shaft Size
(C+30)x(D+30)
1
A B+20
A+280 B+280
2,3
A+20 B
A+210 B+310
4,5
A B
A+20 B+20
A+240 B+280
6
A+40 B
A+210 B+310
7
A+20 B+20
A+210 B+280
1. In case of car doors, B-100
2. In case of car doors, B-200

Layout 1

Layout 2-3

Layout 4-5

Layout 6

Layout 7

Model Floor Loading

Ner Layout Cabin MTH
1 (layout frontal)
2 (layout lateral)
3 (layout lateral)
4 (double layout 90º)
5 (double layout 90º)
6 (double layout 180º)
A mm
Landing Doors layout 1
Right Side
700 - 1200
1000 - 1200
750 - 1200
-
1000 - 1200
1050 - 1200
Left Side
750 - 1200
1000 - 1200
1000 - 1200
-
750 - 1200
Landing Doors layout 2
Right Side
-
-
-
1000 - 1200
-
750 - 1200
Left Side
-
-
-
-
1000 - 1200
1050 - 1200
B mm
700 - 1200
700 - 1200
700 - 1200
700 - 1200
700 - 1200
700 - 1200
Maximum surface (A x B) = 1.2 m2
(*) 90 º Double car are available depending on the boarding access and door hand side opening. Take in to consideration the cam can not be placed at corner frame side.
(**) Cam could not be placed at guides side in case of A<1050.
(***) The projection in plant of the landing doors, invades 10 mm the internal projection of the shaft.

Layout 1

Layout 2-3

Layout 4-5

Layout 6

Ner Layout Cabin MTH
1 (layout frontal)
2 (layout lateral)
3 (layout lateral)
4 (double layout 90º)
5 (double layout 90º)
6 (double layout 180º)
A mm
Landing Doors layout 1
Right Side
700 - 1200
1000 - 1200
750 - 1200
-
1000 - 1200
1050 - 1200
Left Side
750 - 1200
1000 - 1200
1000 - 1200
-
750 - 1200
Landing Doors layout 2
Right Side
-
-
-
1000 - 1200
-
750 - 1200
Left Side
-
-
-
-
1000 - 1200
1050 - 1200
B mm
700 - 1200
700 - 1200
700 - 1200
700 - 1200
700 - 1200
700 - 1200
Maximum surface (A x B) = 1.2 m2
(*) 90 º Double car are available depending on the boarding access and door hand side opening. Take in to consideration the cam can not be placed at corner frame side.
(**) Cam could not be placed at guides side in case of A<1050.
(***) The projection in plant of the landing doors, invades 10 mm the internal projection of the shaft.

Layout 1

Layout 2-3

Layout 4-5

Layout 6
