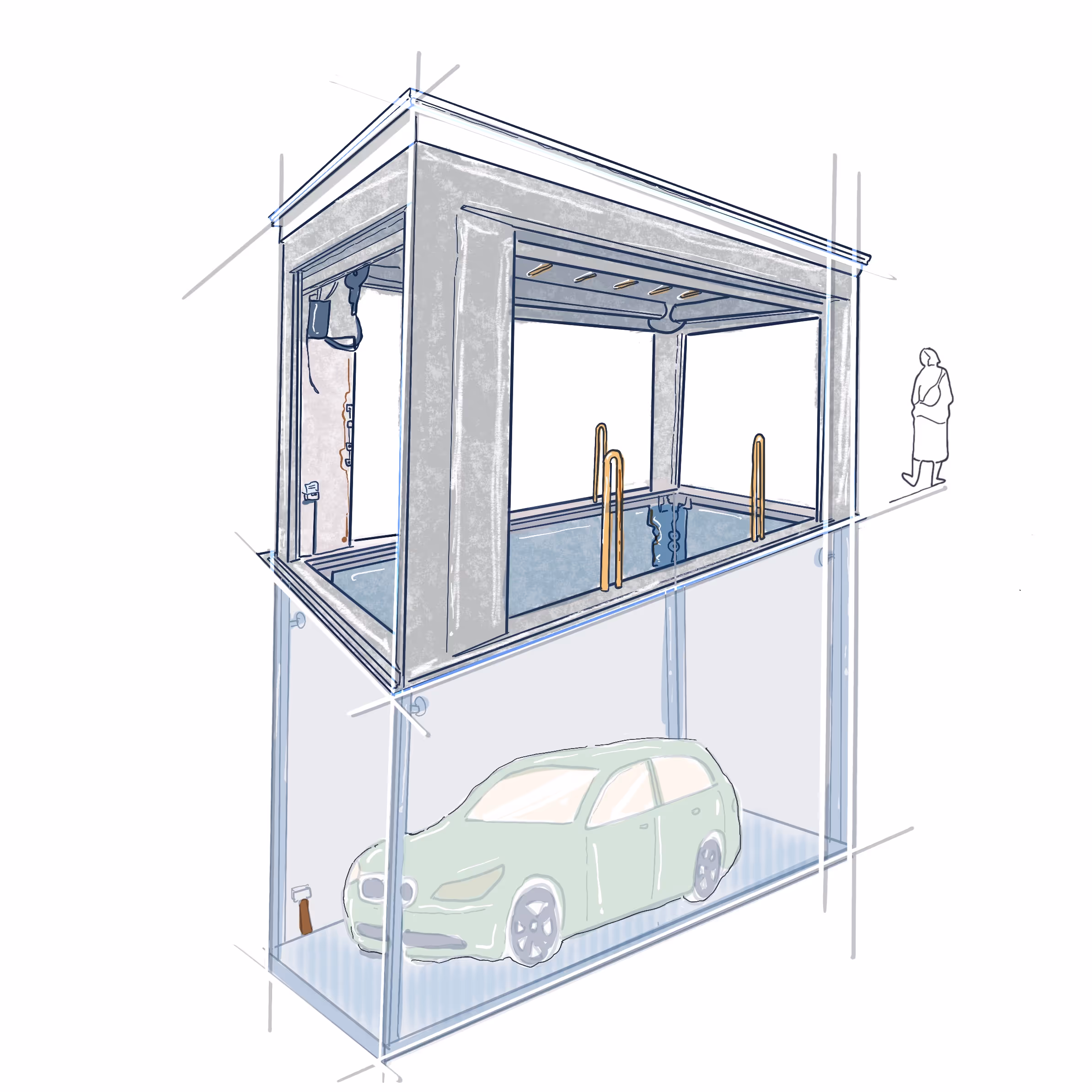

The Closed car lift with a shaft head of 2,600 mm offers an architecturally appealing solution for modern building design. This space-saving design, featuring a standardised machine-room-less configuration, allows for fast and easy parking implementation.
Sleek shaft head with a height of 2,600 mm enhances building aesthetics.
Space-Saving Design
Machine-room-less configuration optimises building space.
Fast and Easy Installation
Streamlined design allows for quick and efficient installation.
High-Quality Components
Utilises reliable and efficient drive and lift components manufactured in Germany.
Customisation Options
Available with various cabin finishes, including RAL colors, stainless steel, and linen stainless steel.
Features 1:1 Indirect
Travel Height (Max)
up to 9m
Speed (Max)
0.2 up to 1 m/s
Load Capacity (Max)
3,500 kg to 5,000 kg
Drive Type
1:1 direct
Drive System
Electronic regulated or VVVF
Pit Depth (Min)
1,000 mm
Headroom (Min)
3,500 mm
Reduced shaft pit
500 mm
Reduced shaft head
3,000 mm
Car Width (Max)
2,500 mm up to 3,000 mm
Car Depth (Max)
5,500 mm up to 6,000 mm
Car Height (Max)
2,000 mm up to 2,400 mm
Shaft Width (Min)
3,250 mm up to 4,000 mm
Shaft Depth (Min)
6,300 mm up to 6,800 mm
Door Entrances (Number/Type)
Single or double entrance available
Door Width (Max)
2,400 mm up to 2,800 mm
Door type
Central – 4 and 6 panels opened
Machine Room Location
Next to shaft pit, MRL or in the niche of the shaft wall
Motor Power & Power Supply
60kw to 100kw
Electrical Panel
Three phase 400V
Safety Features
As per EN 81-20
Operation Indicator
As per EN 81-20
Features 1:2 Indirect
Travel Height (Max)
up to 30 m
Speed (Max)
0.2 up to 1 m/s
Load Capacity (Max)
3,500 kg to 5,000 kg
Drive Type
1:2 indirect
Drive System
Electronic regulated or VVVF
Pit Depth (Min)
1,400 mm
Headroom (Min)
3,400 mm
Reduced shaft pit
1,000 mm
Reduced shaft head
2,600 mm
Car Width (Max)
2,500 mm up to 3,000 mm
Car Depth (Max)
5,500 mm up to 6,000 mm
Car Height (Max)
2,000 mm up to 2,400 mm
Shaft Width (Min)
3,250 mm up to 4,000 mm
Shaft Depth (Min)
6,300 mm up to 6,800 mm
Door Entrances (Number/Type)
Single or double entrance available
Door Width (Max)
2,400 mm up to 2,800 mm
Door type
Central – 4 and 6 panels opened
Machine Room Location
Next to shaft pit, MRL or in the niche of the shaft wall
Motor Power & Power Supply
60kw to 100kw
Electrical Panel
Three phase 400V
Safety Features
As per EN 81-20
Operation Indicator
As per EN 81-20
Notes
Standard cabin in primed version with galvanised panels, energy-saving LED flat lights, and ramming protection available.
Cabin lining available in different RAL colors, stainless steel K-240, or linen stainless steel finishes.
Includes traffic light system and positioning display.
Hydraulic drive, car frame, car, and doors – everything from a single source.
Free market components, free choice of control systems.
Open Car Lift
Innovative Parking Solutions
The Open car lift offers a revolutionary approach to vertical transportation, eliminating vibrations and eliminating the need for structural support from the building. This innovative design utilises a self-supporting system with vertical sliding on four columns, ensuring smooth movement and long-lasting durability.
Eliminates the need for structural support from the building, increasing installation flexibility.
Vibration-Free Operation
Ensures smooth and quiet operation with minimal disturbance.
Reduced Technical Pit Depth
Minimises excavation requirements and installation complexity.
High Load Capacity
Handles heavy loads up to 4,000kg.
Customisable Solutions
Available with a range of options to suit specific project needs.
Features
Travel Height (Max)
14m
Speed (Max)
60 mm/s
Load Capacity (Max)
3500kg
Drive Type
Hydraulic 2:1 acting
Drive System
Electronic regulated
Pit Depth (Min)
800 mm
Headroom (Min)
-
Car Width (Max)
2500 mm
Car Depth (Max)
5300 mm
Car Height (Max)
2400 mm
Shaft Width (Min)
2600 mm
Shaft Depth (Min)
5400 mm
Door Entrances (Number/Type)
Single or double
Door Width (Max)
n/a
Door Height (Max)
n/a
Door Type
n/a
Machine Room Location
Next to shaft pit
Motor Power & Power Supply
5.5kw to 11kw
Electrical Panel
Three phase 400V
Safety Features
Emergency Stop buttons
Operation Indicator
Flashing floor light signal
Notes
Available with a passable cover cap for the pit (Saturno CT version) to create a seamless floor surface.
Ideal for installations where space is limited and minimal excavation is required.
Customisation options available to suit specific project needs.
Turntable Car Lift
Innovative Parking Solutions
The Turntable Car Rotating Platform provides a unique solution for optimising parking space in confined areas. By allowing vehicles to rotate 360 degrees, the Turntable platform facilitates easy entry and exit, even in tight spaces.
Enables easy vehicle access and exit in confined spaces.
Space-Saving Design
Optimises parking space utilisation.
Smooth and Quiet Operation
Ensures a smooth and comfortable rotation experience.
Robust Construction
Built with durable materials for long-lasting performance.
Features
Platform
Swivel (full 360° rotation)
Rotations
Established and programmed with electric limit switches placed around the circumference.
Platform diameter
up to 5500mm
Technical pit
300 mm
Capacity
up to 3500kg
Mass
1,300 kg
Supporting structures
Hot-dip galvanised steel tubulars
Trampling sheets
Anti-slip at the loading surface level.
Circular platform supports
Support wheels placed on the circumference.
Handling
Central fifth wheel and electric motor with man-present and responsible controls.
Motor
2 HP - insertable into the technical pit
Electric current
Single-phase 220 V - 50 Hz.
Electrical controls
Low voltage 24 V with removable key (man present and responsible). - Push button with man-present control. -Emergency STOP button. - Push-button panel with removable control key.
Safety devices
Push button with man-present control. - Emergency STOP button. - Push-button panel with removable control key.
Full warranty
2 years
Notes
Ideal for parking garages, residential buildings, and other locations with limited maneuvering space.
